Analogizer-FPGA

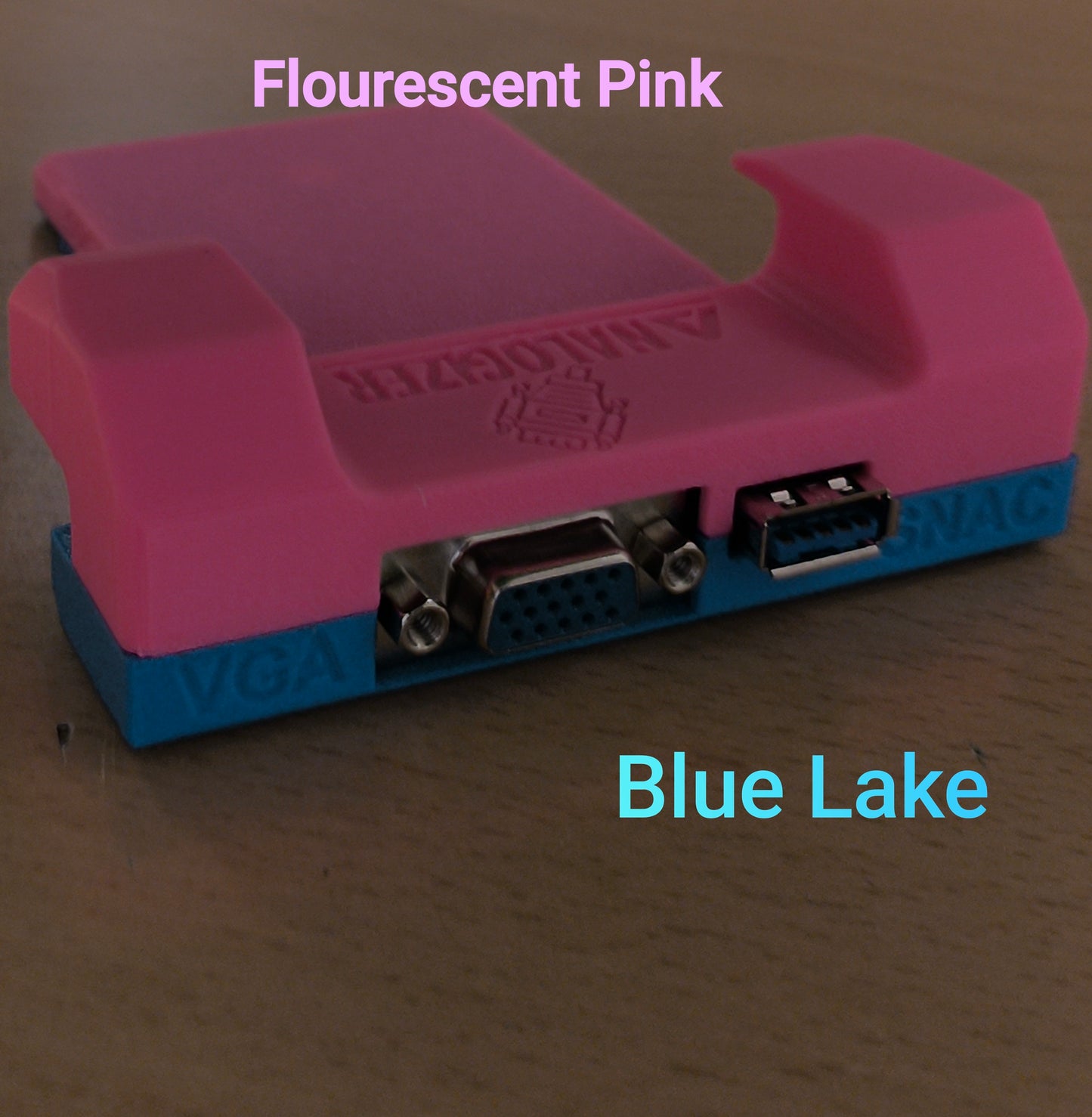

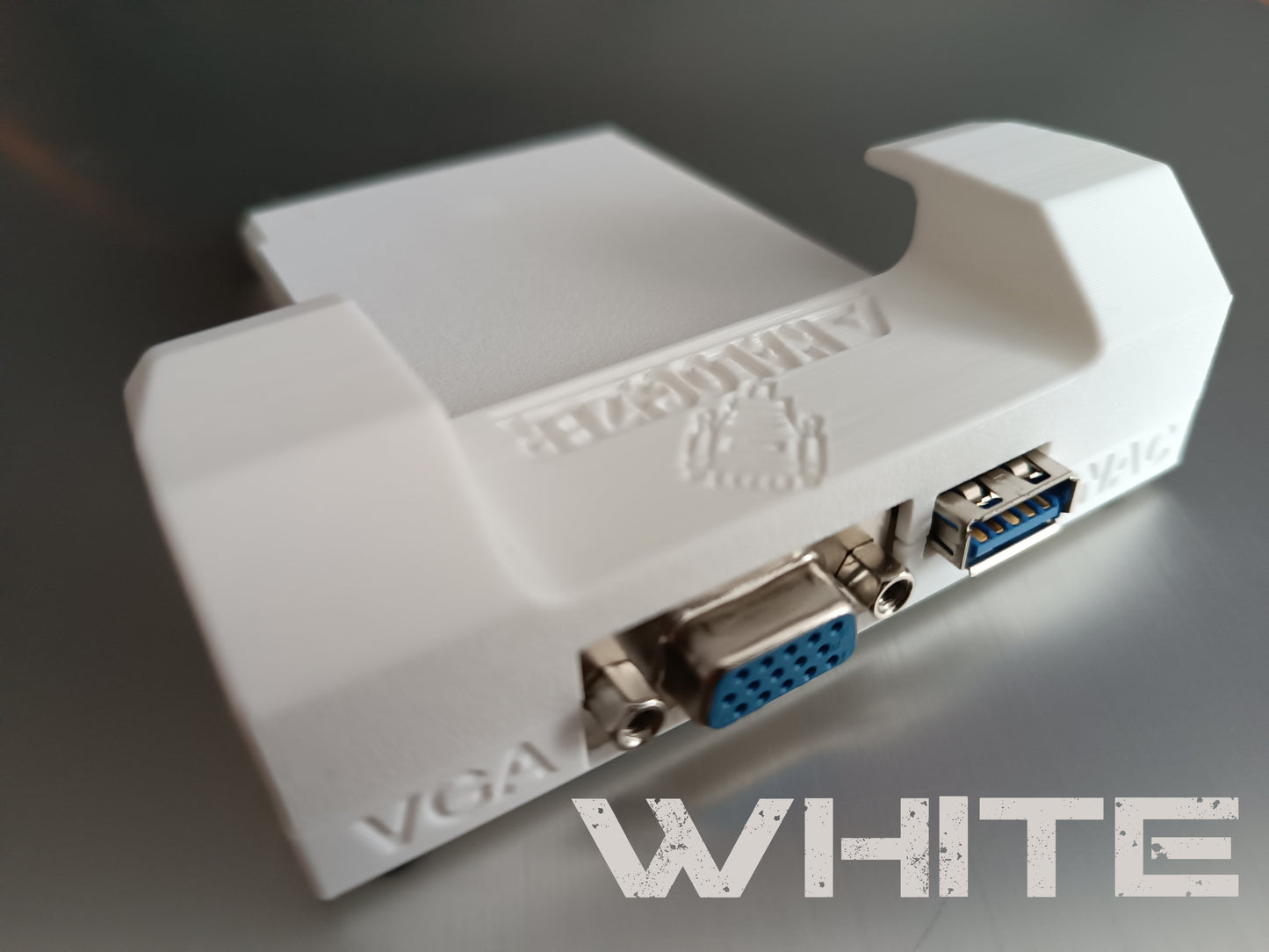

Analogizer-FPGA Adapter R3 (improved video signals PCB routing)

Analogizer-FPGA Adapter R3 (improved video signals PCB routing)

Regular price €50,95 EUR
Regular price €54,00 EUR Sale price €50,95 EUR
Sale Sold out

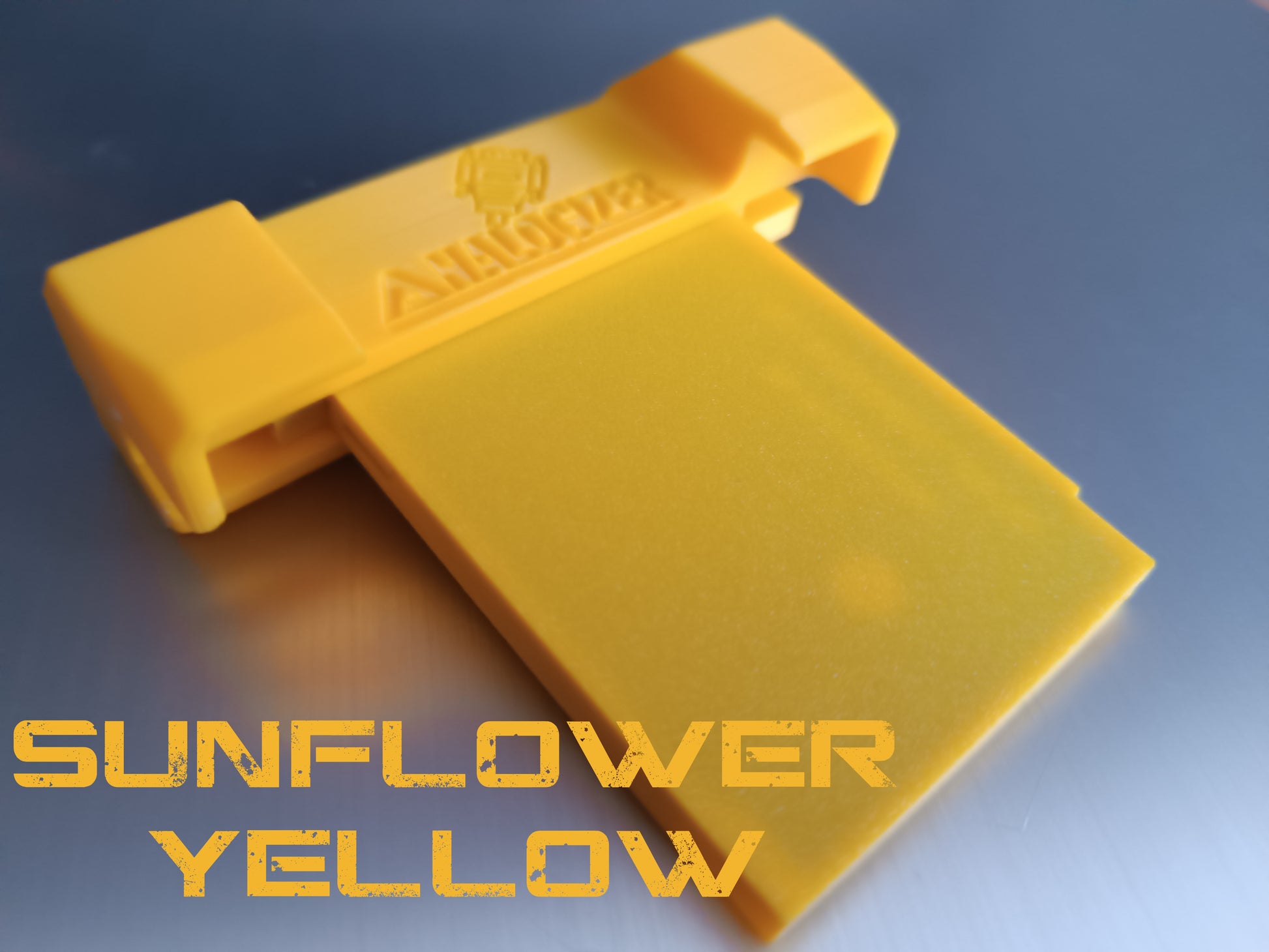

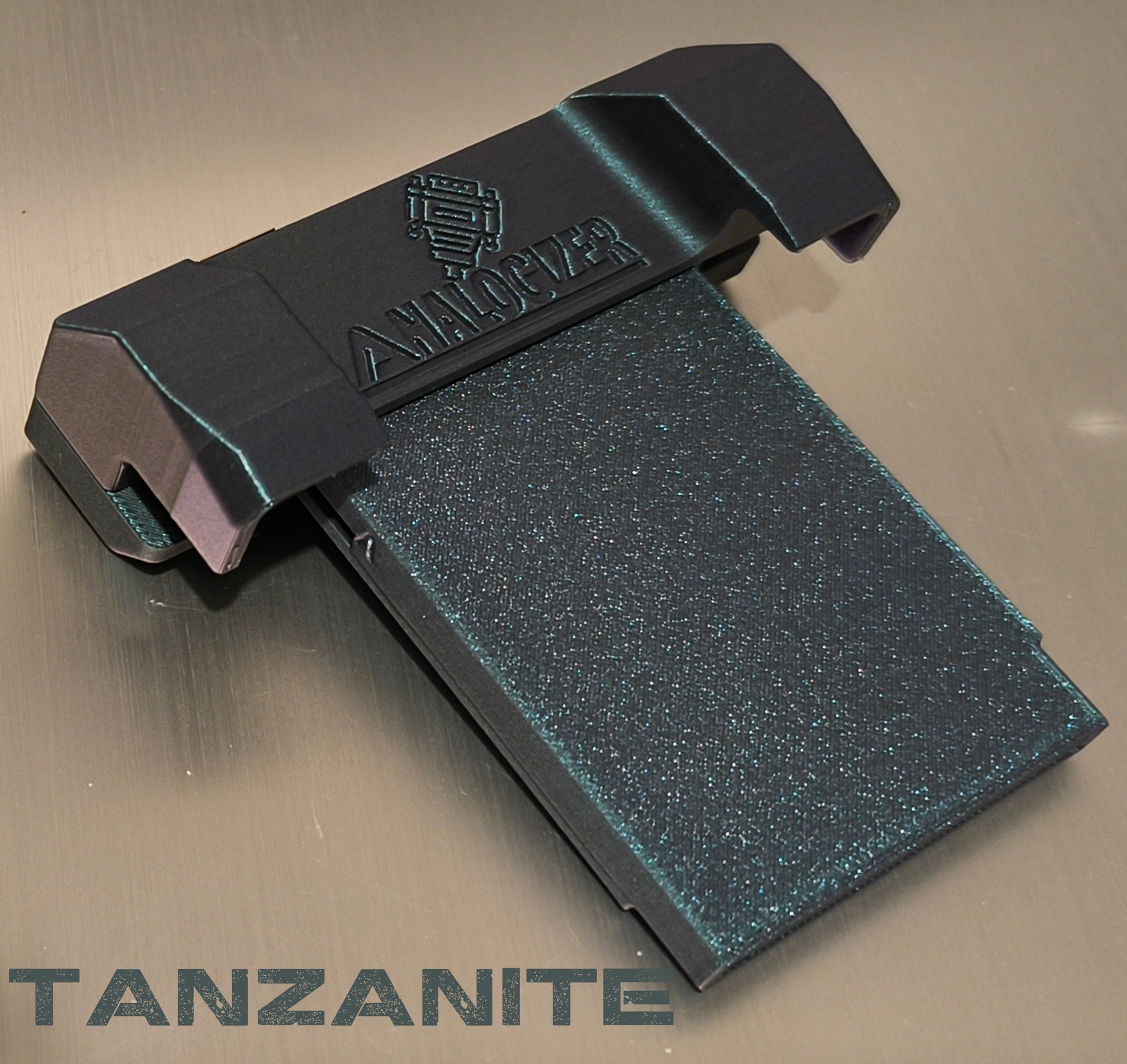

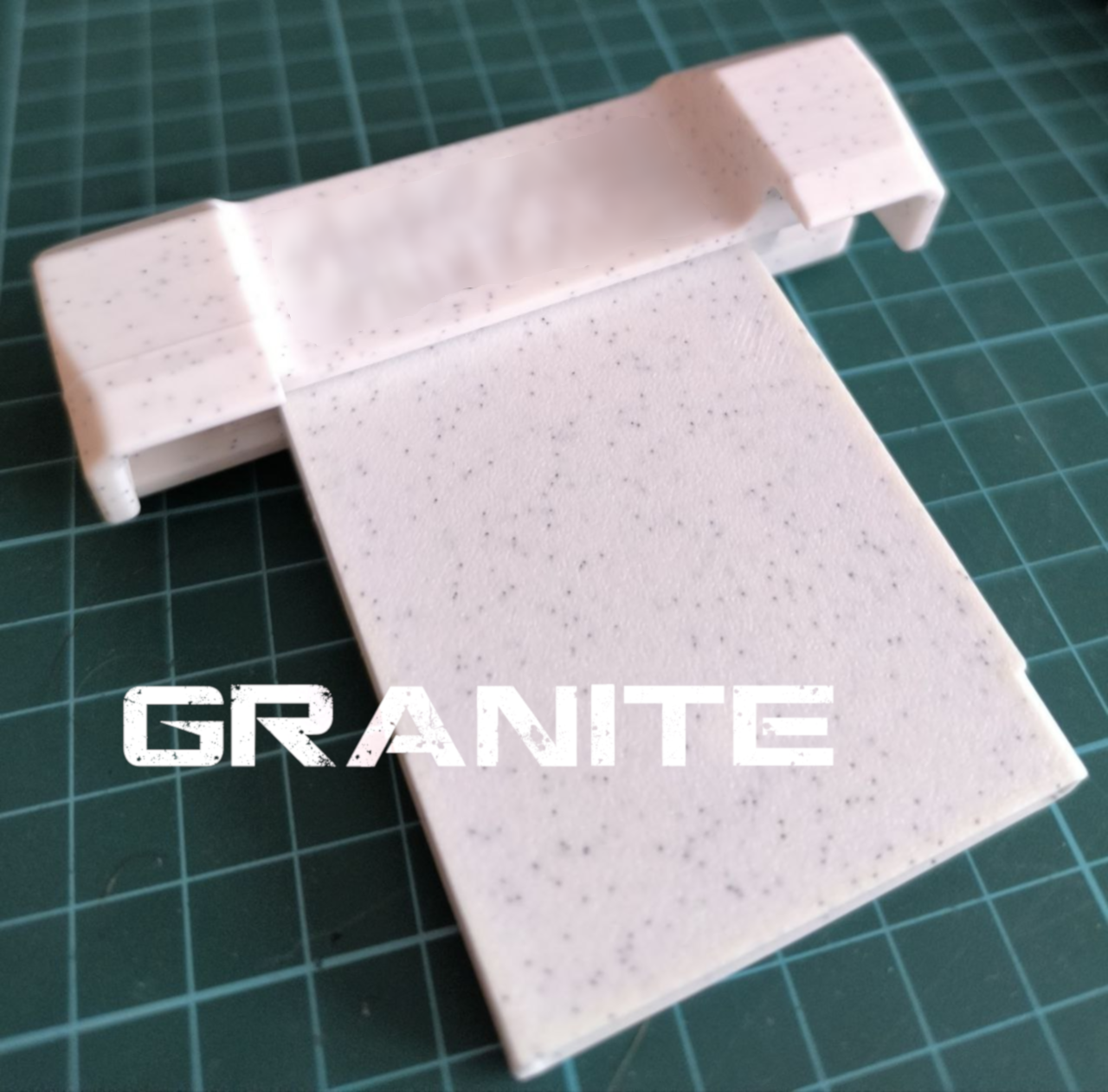

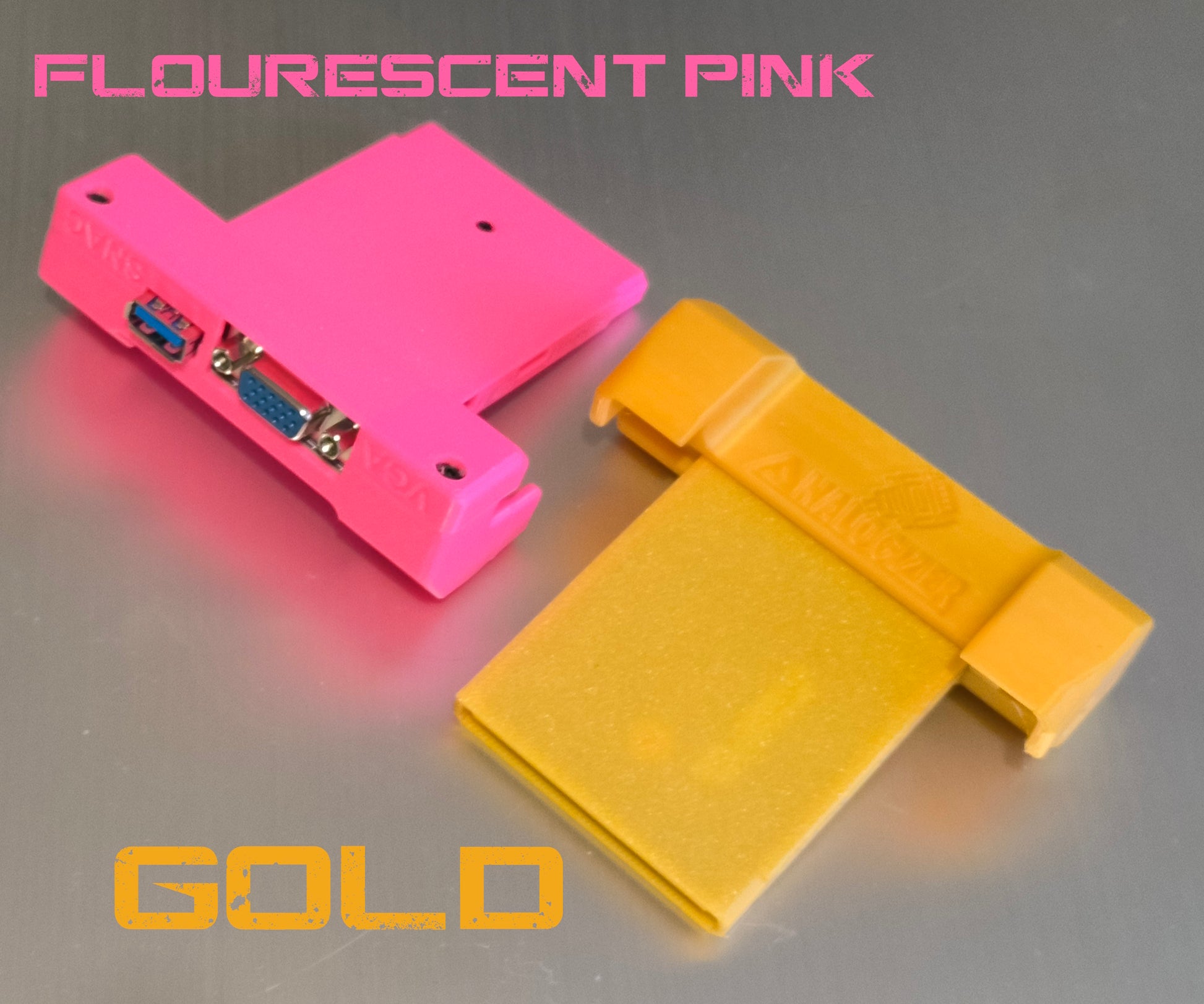

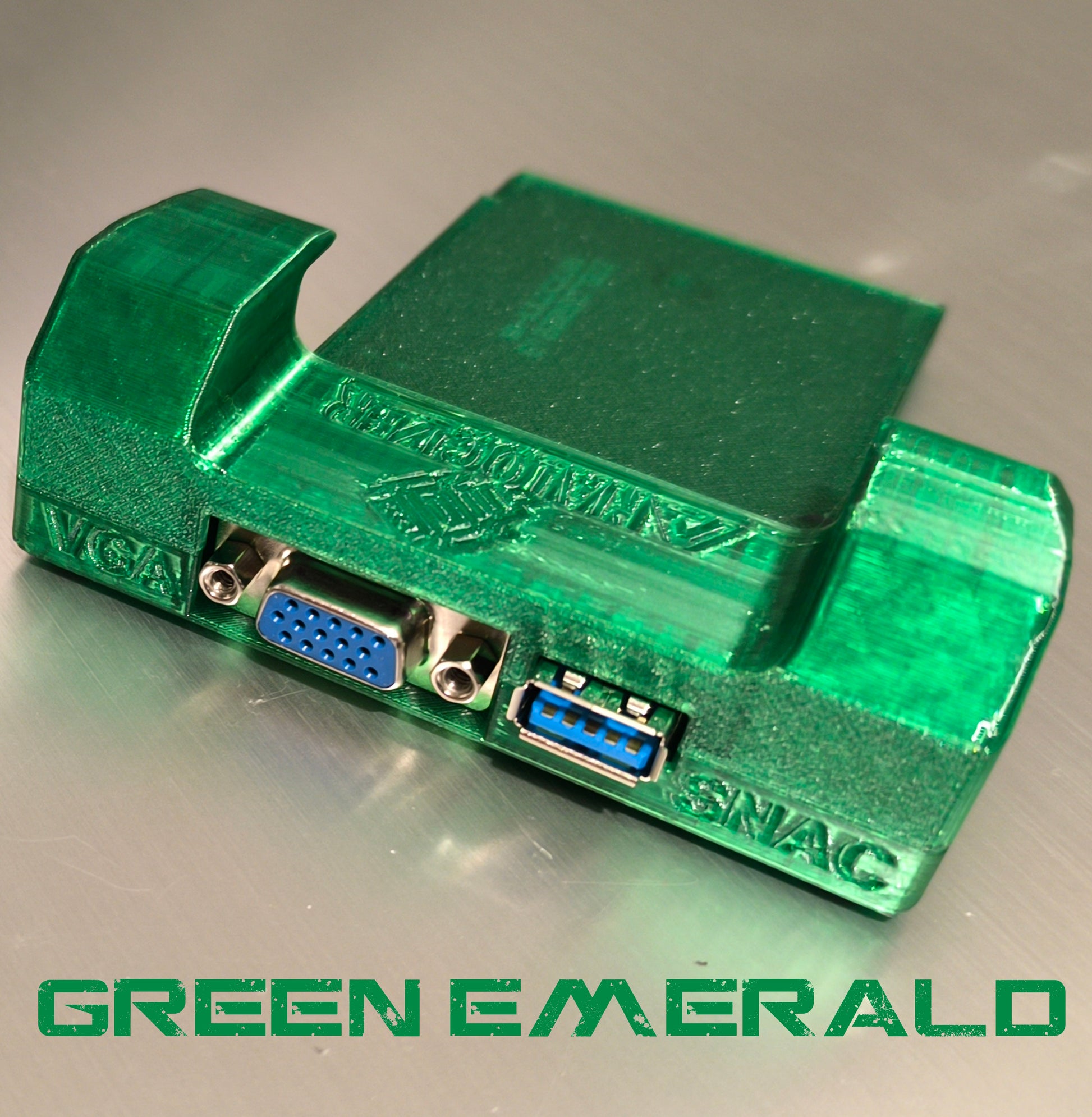

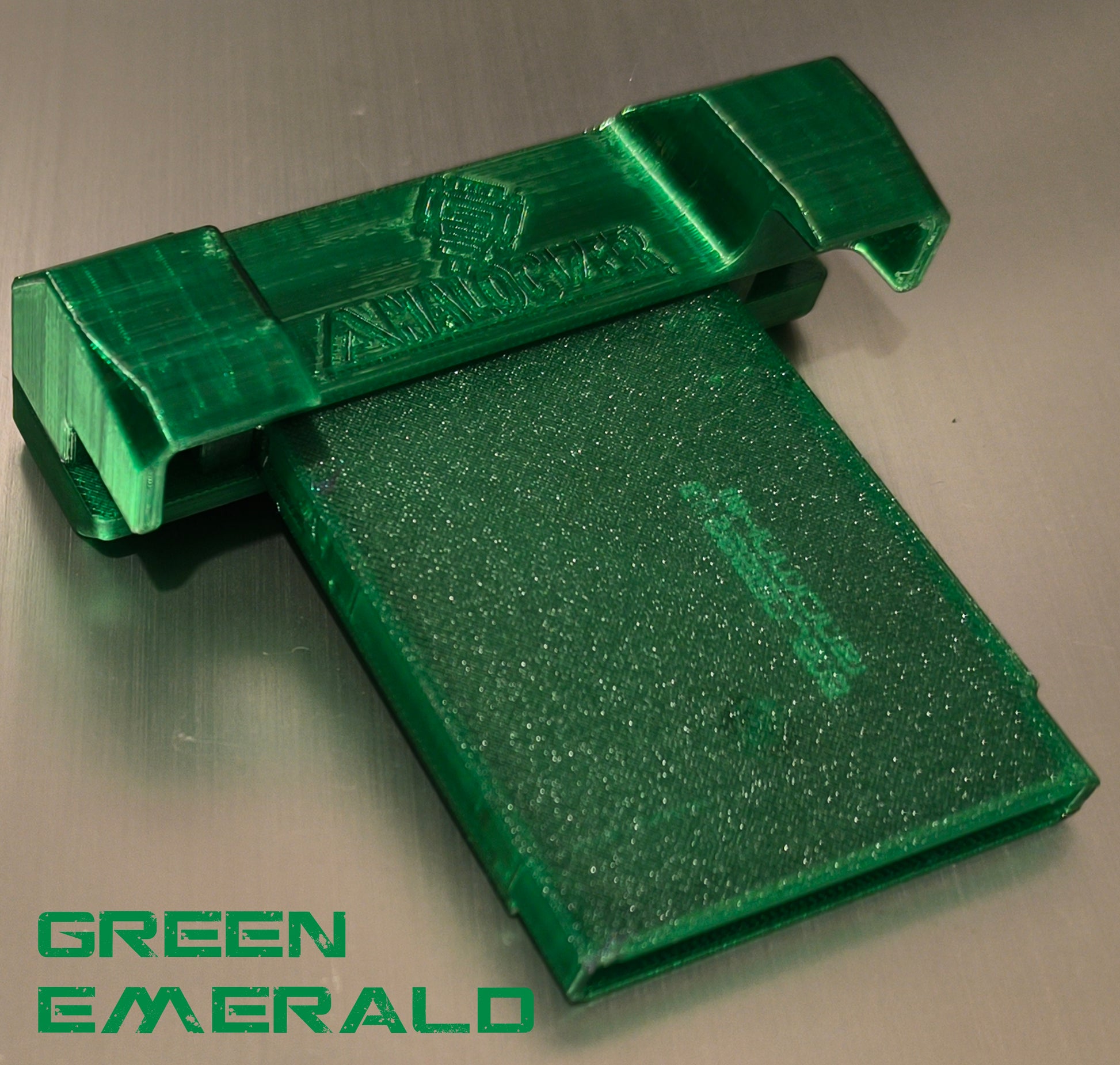

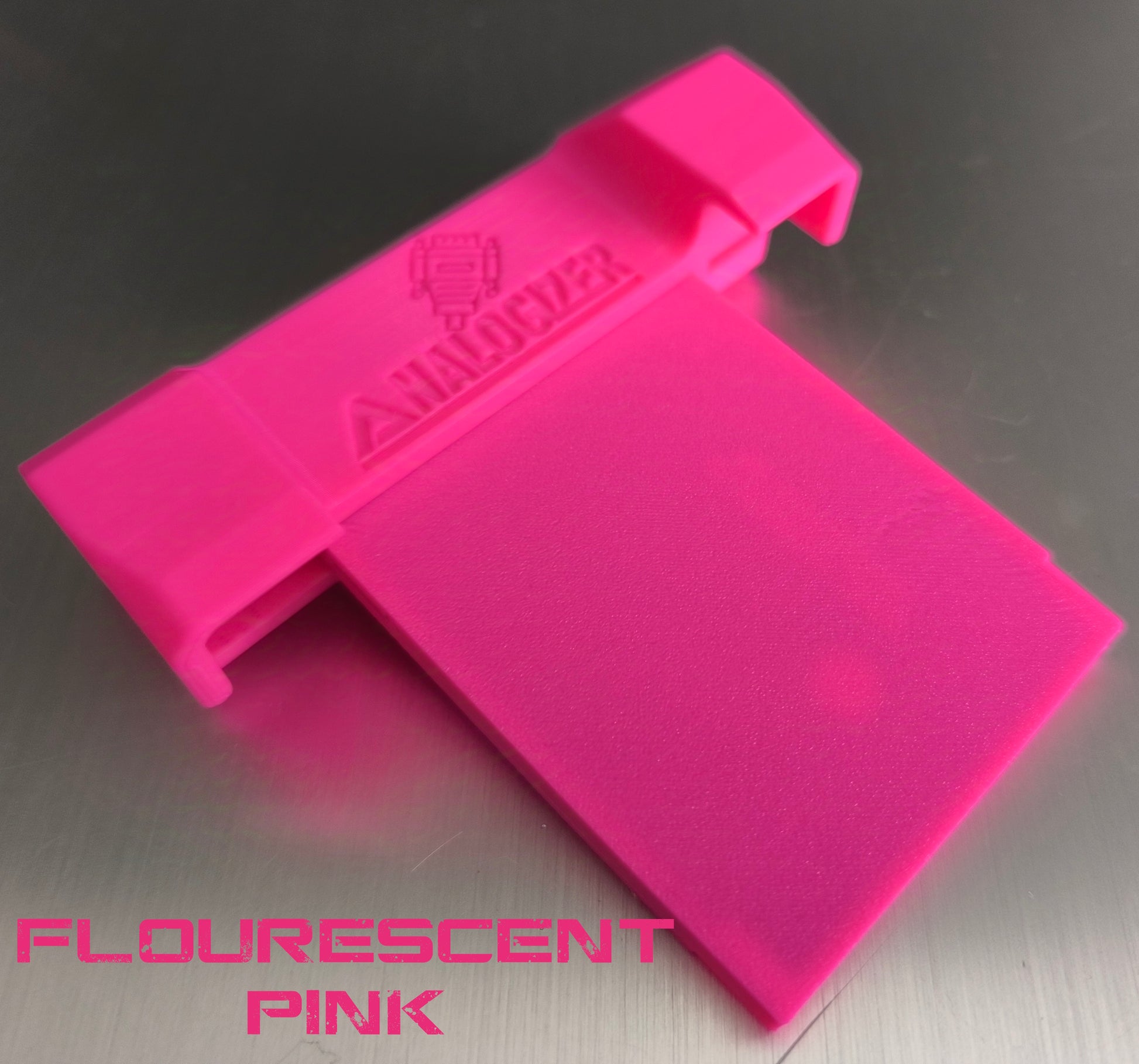

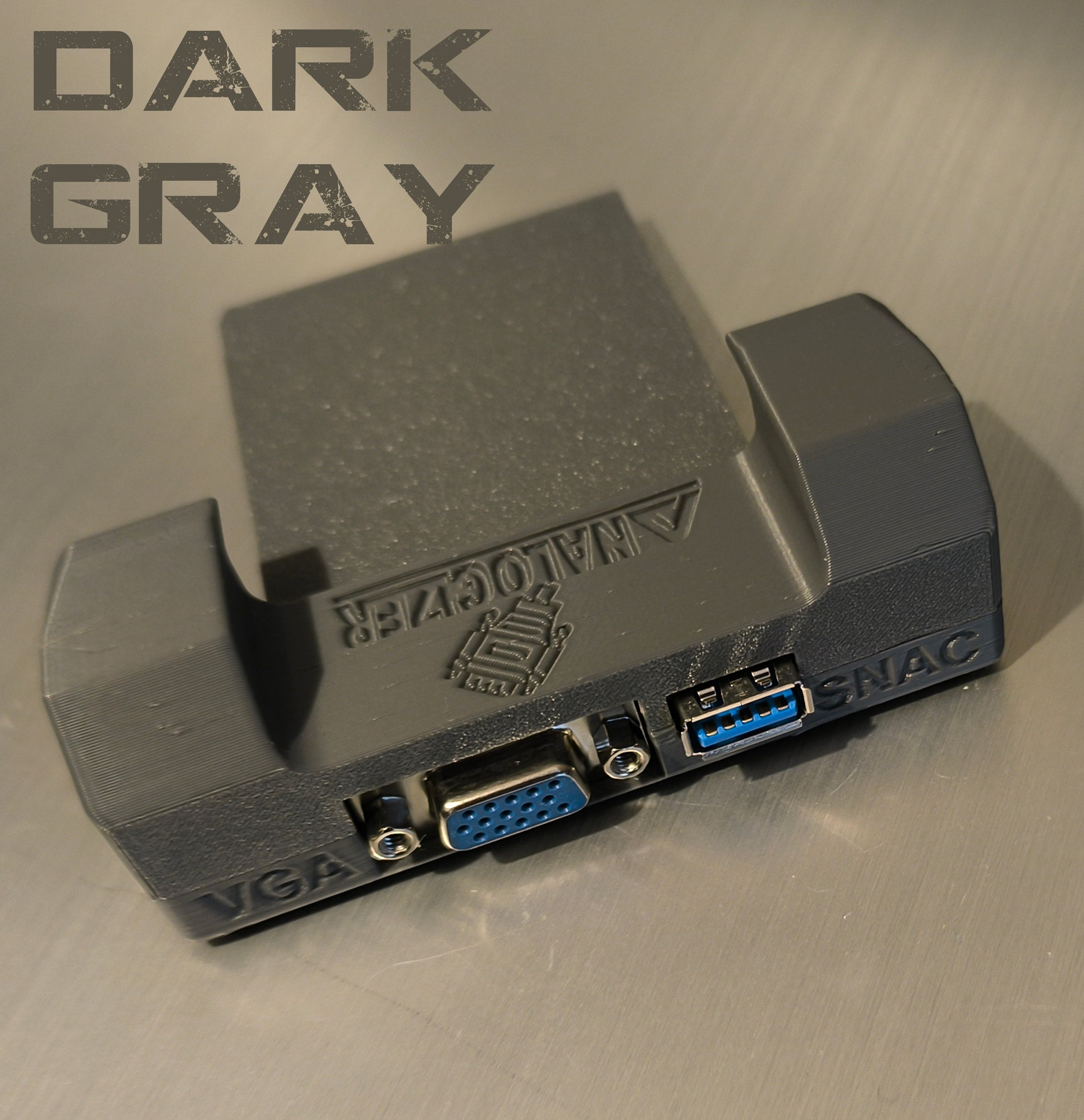

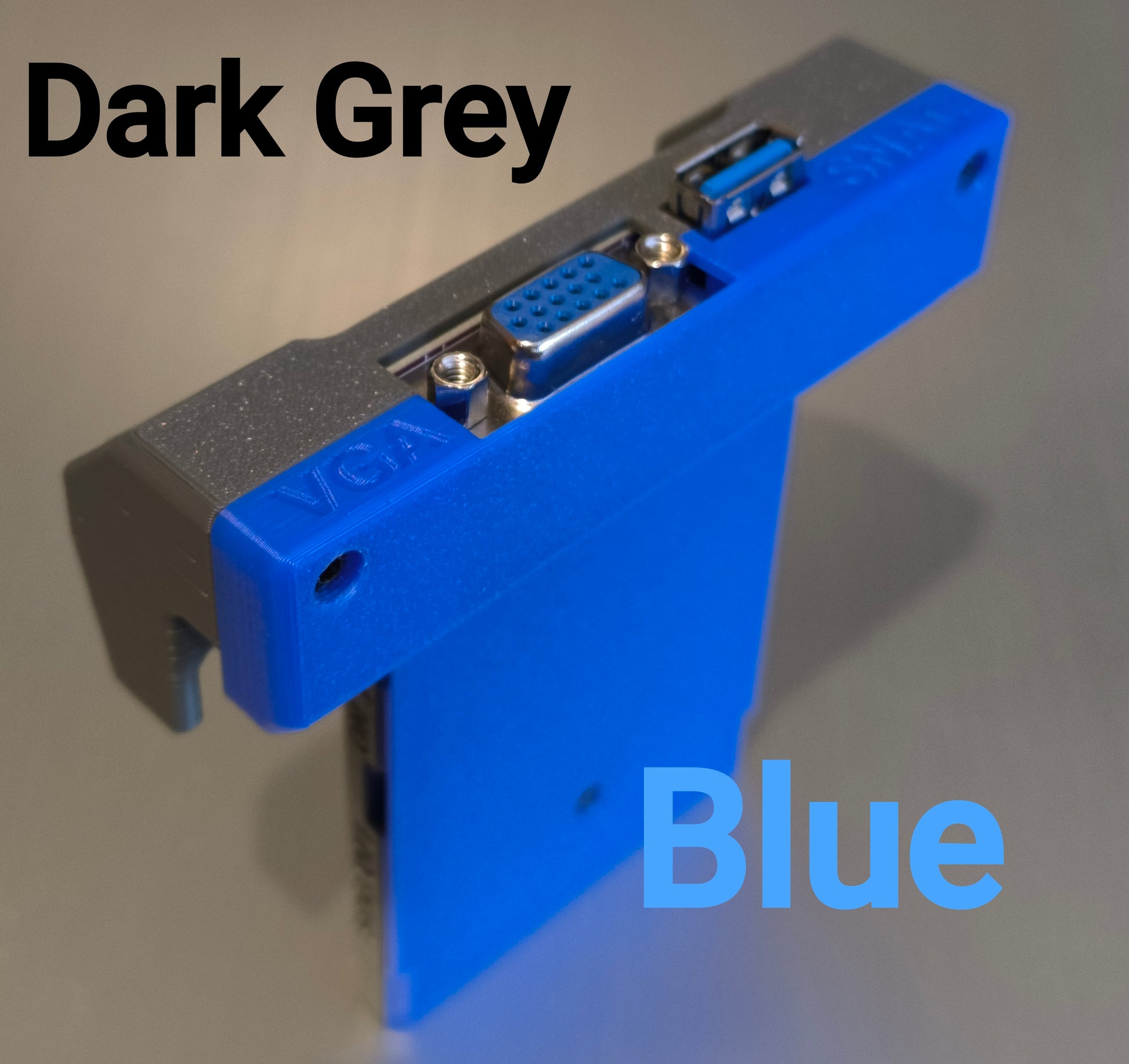

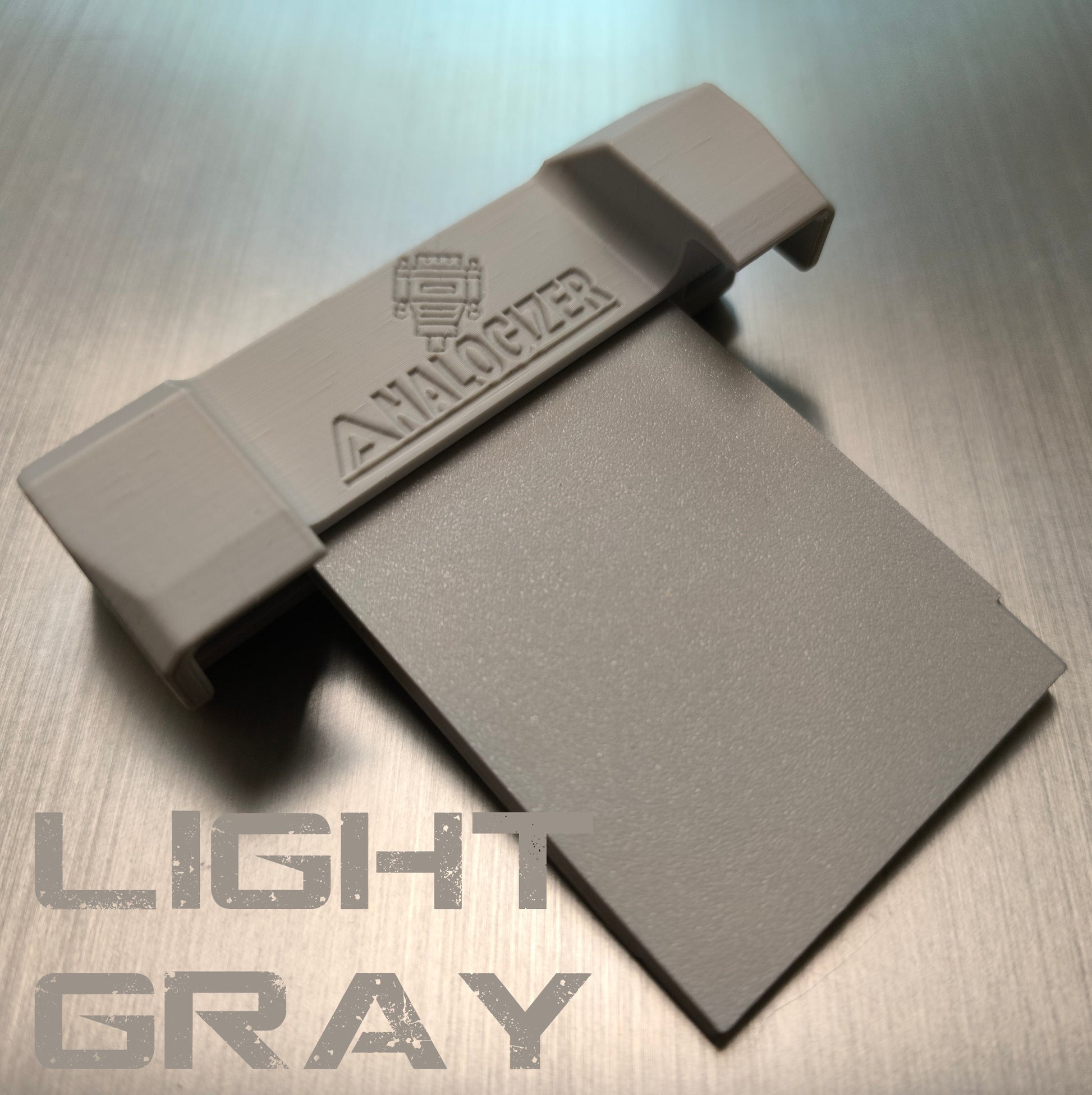

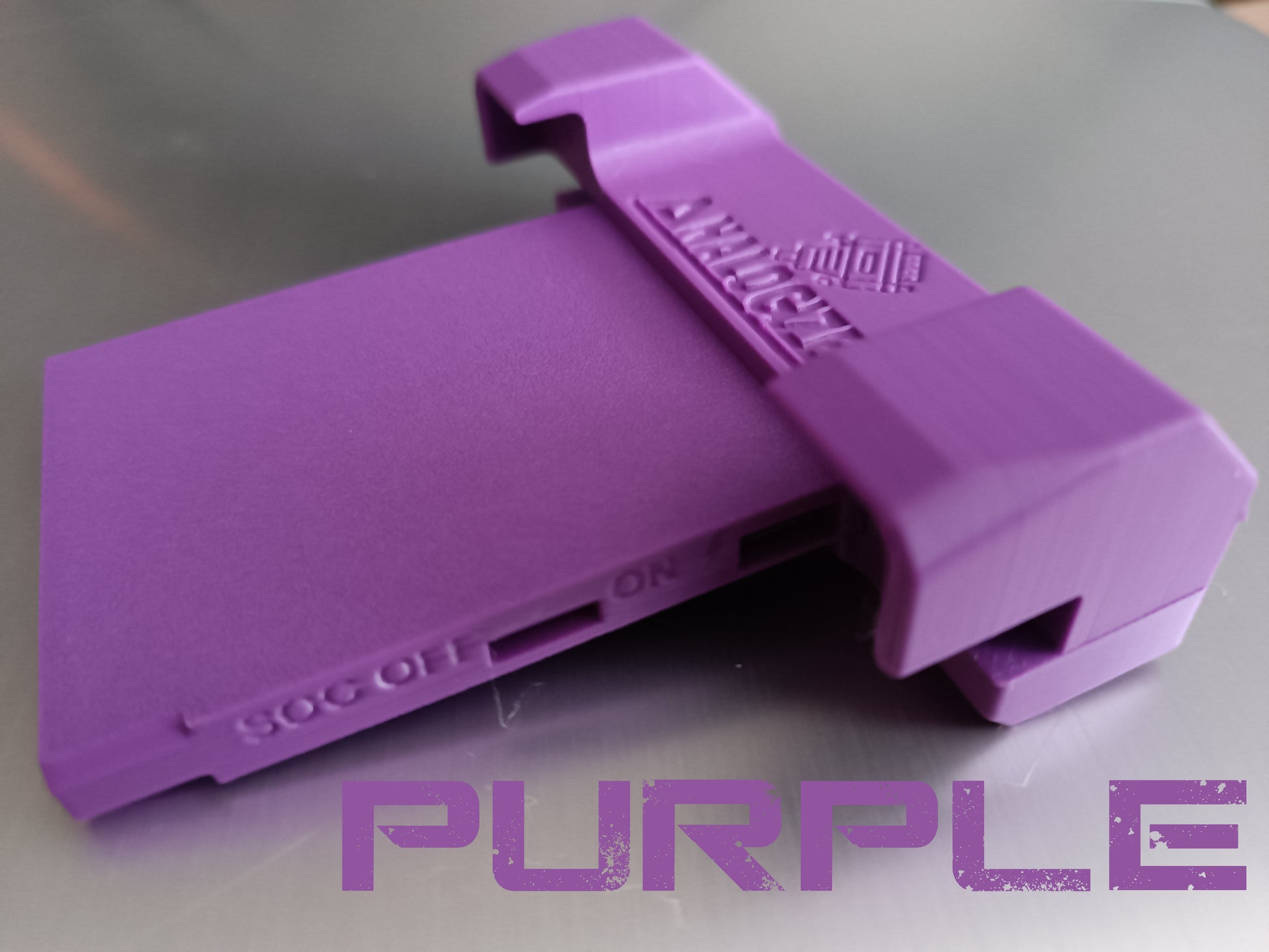

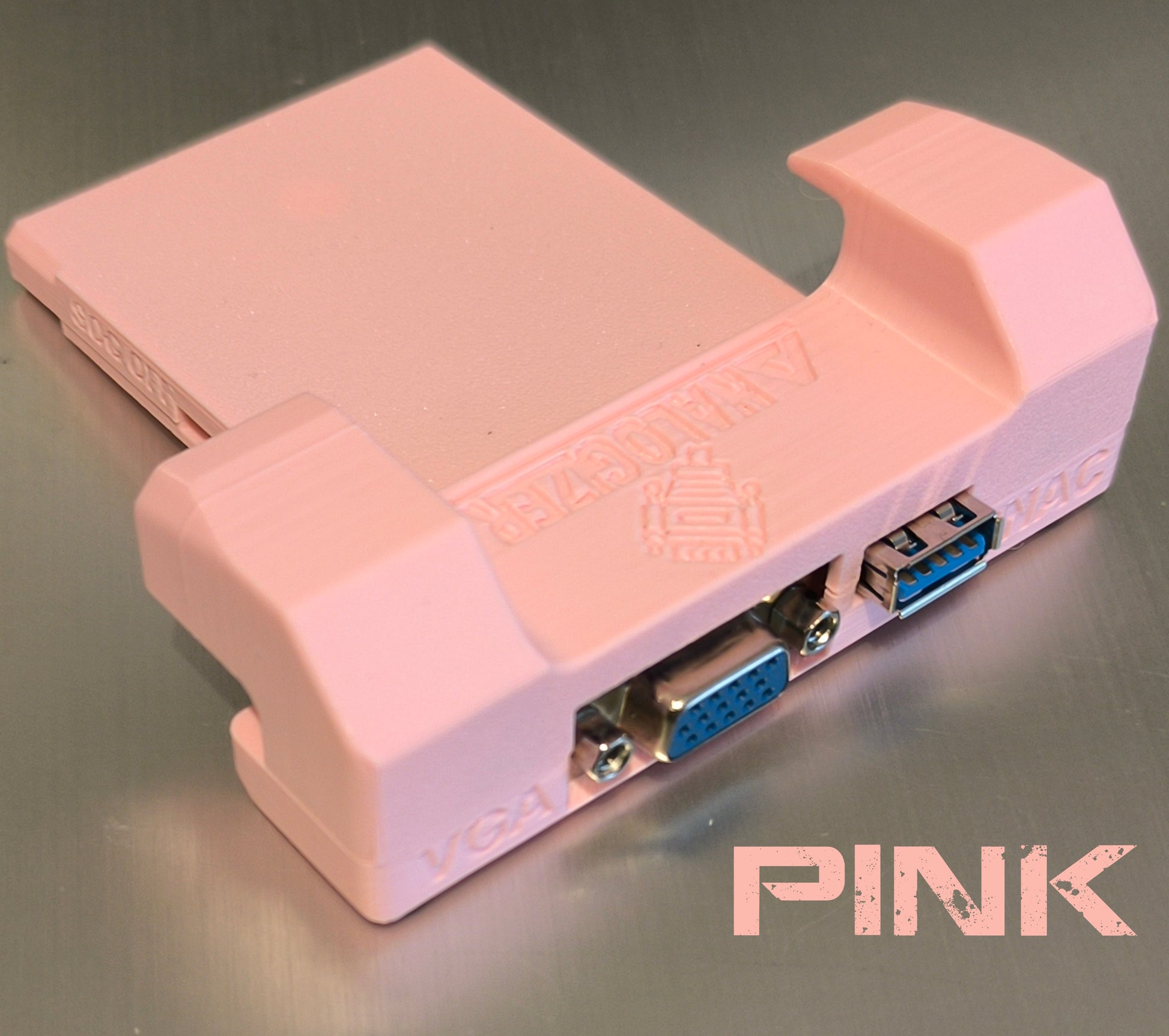

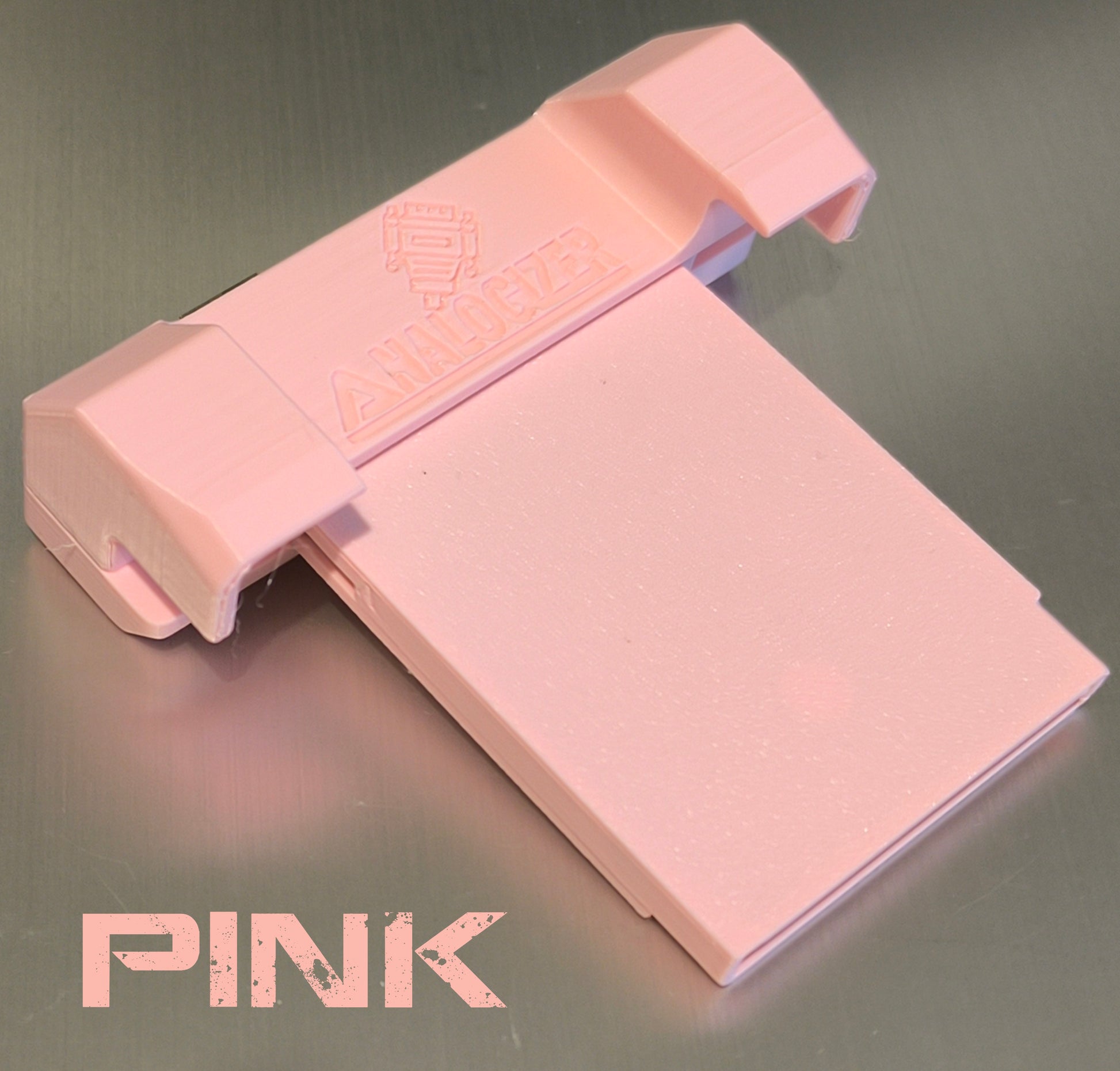

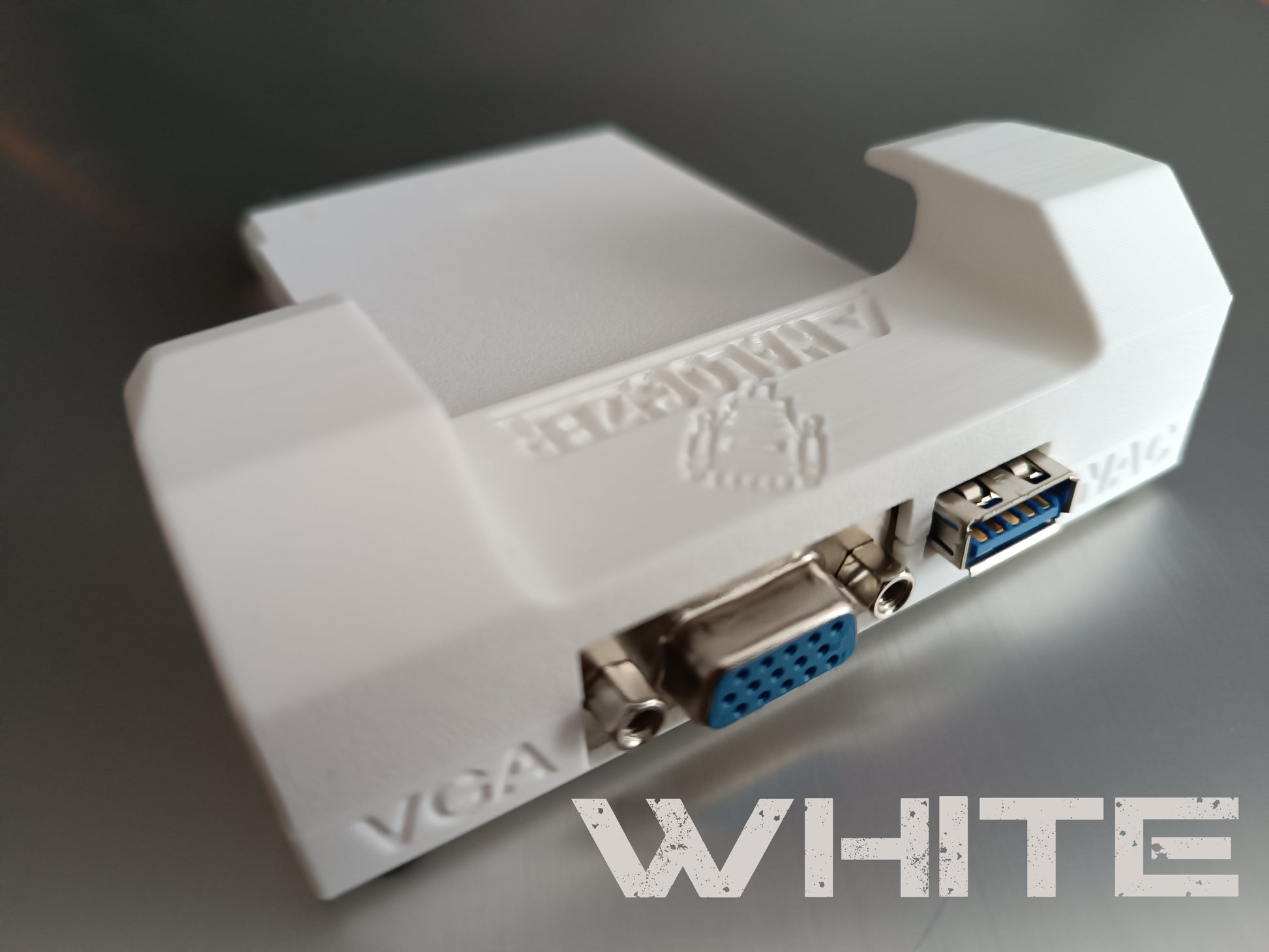

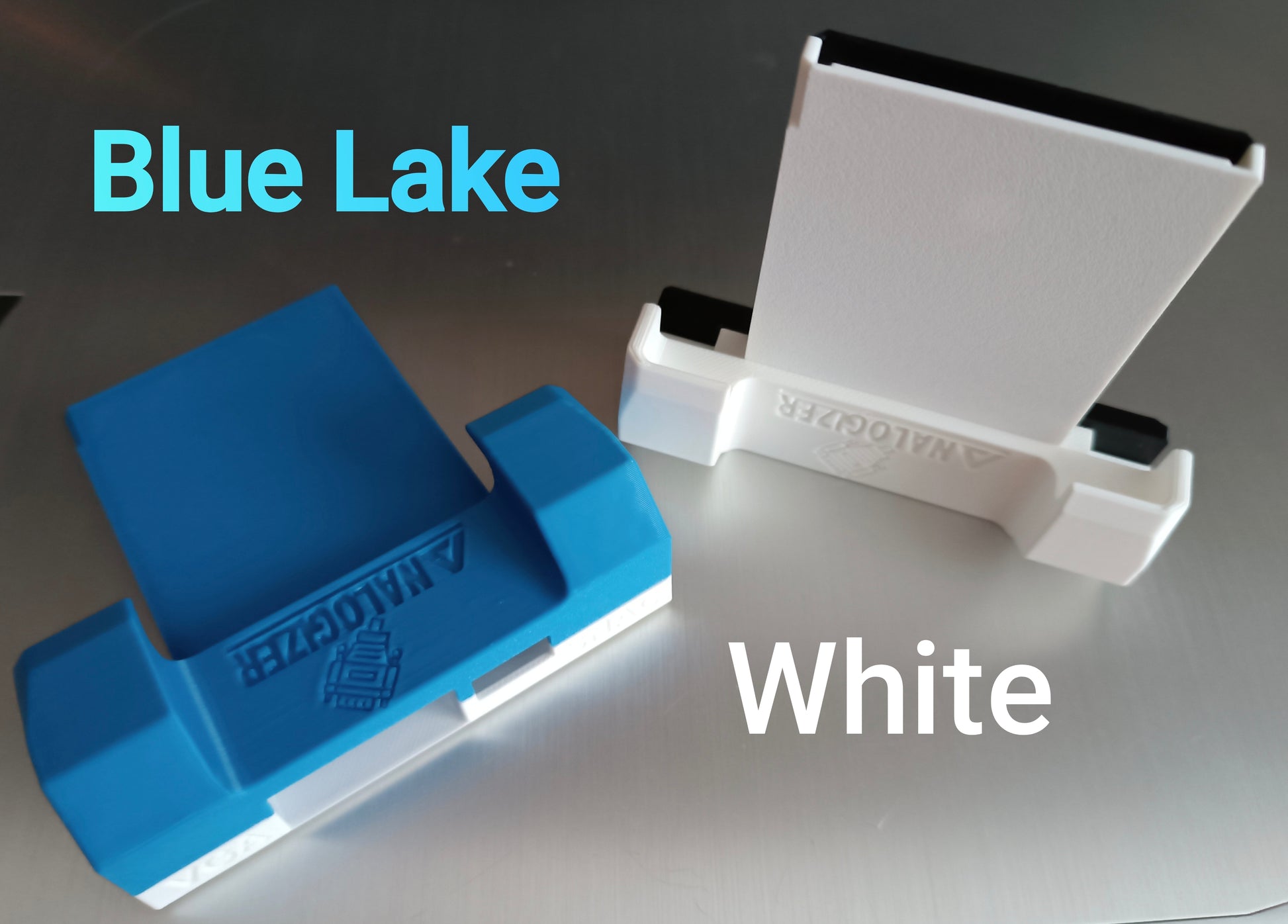

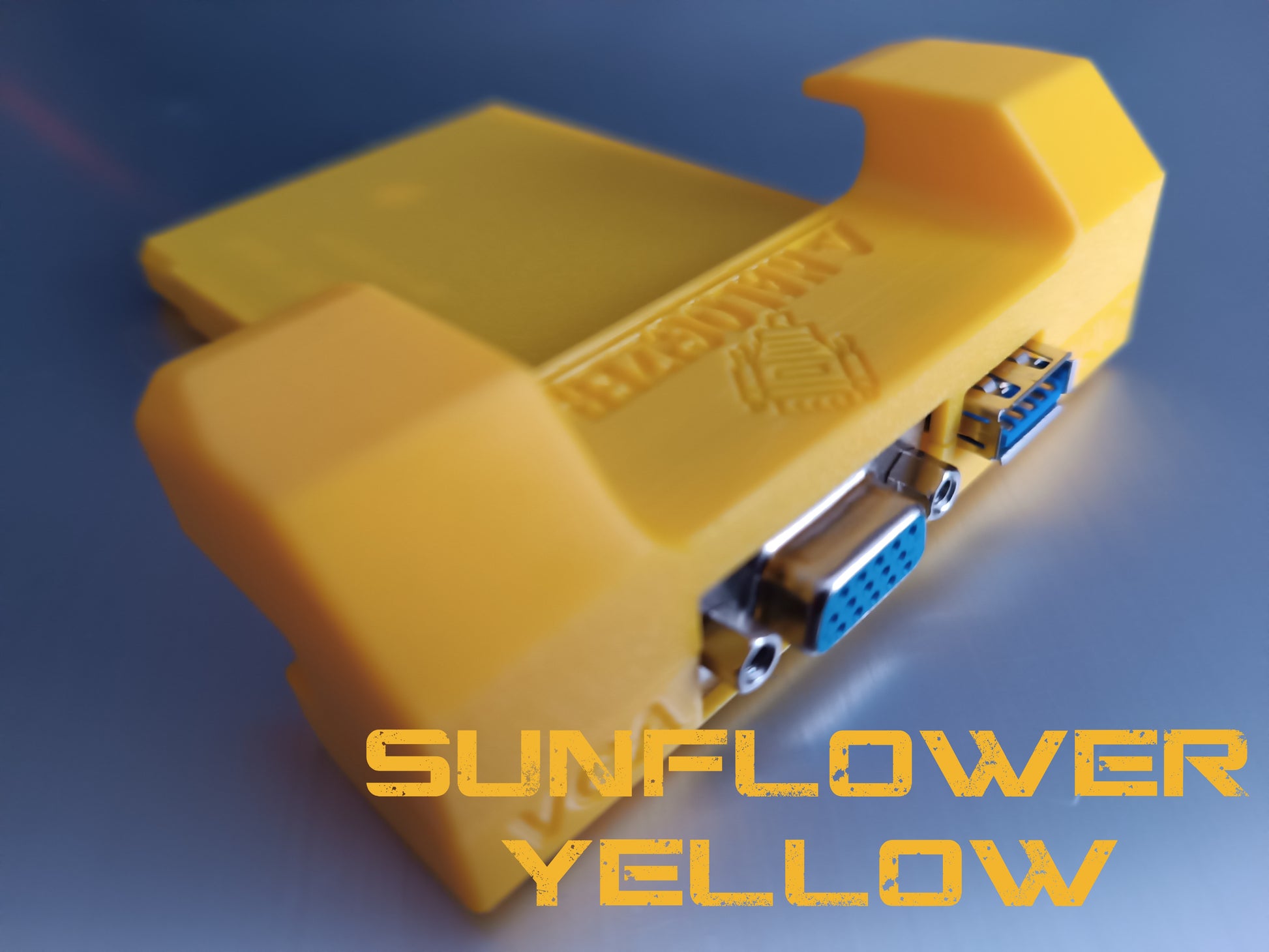

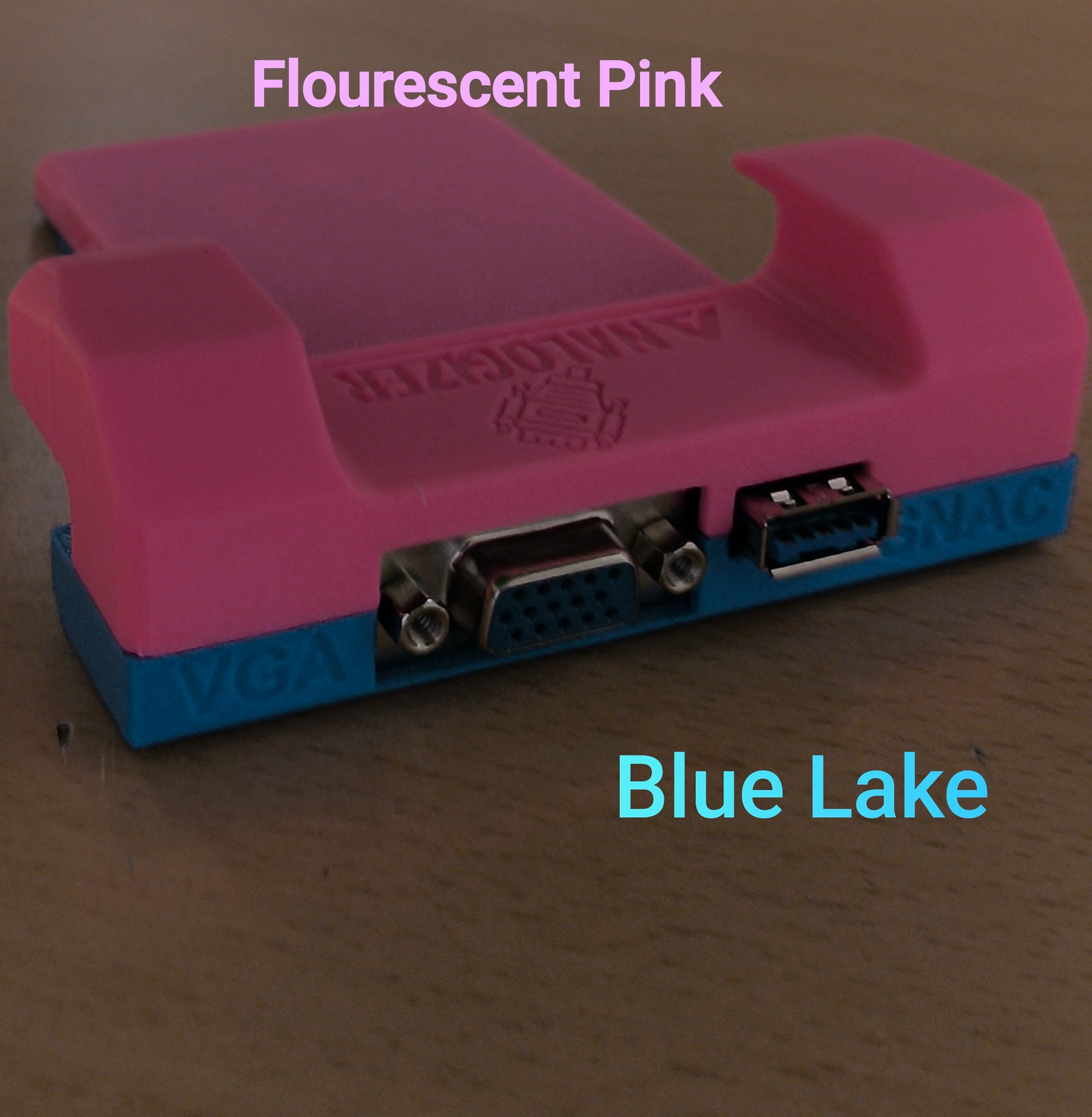

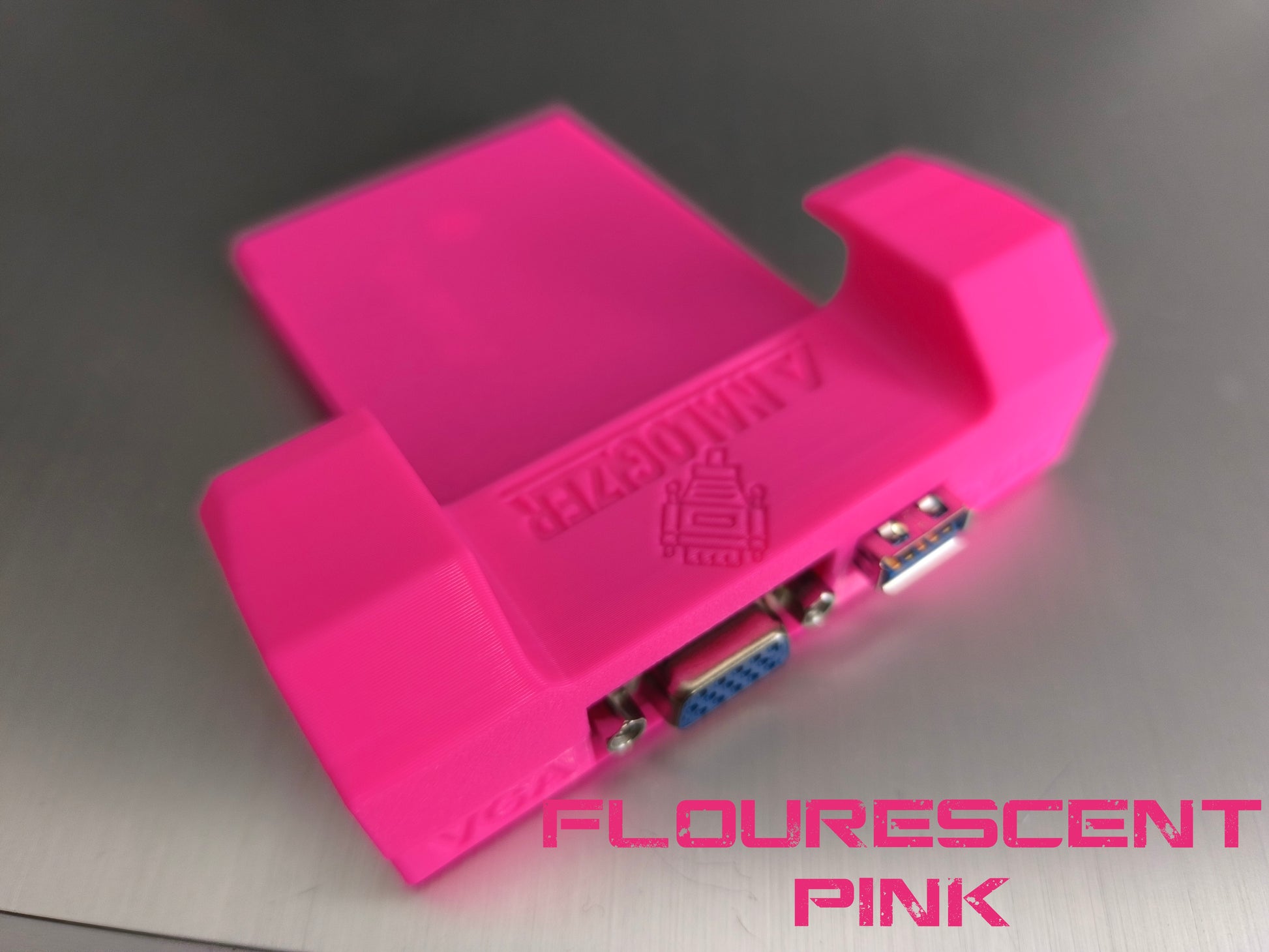

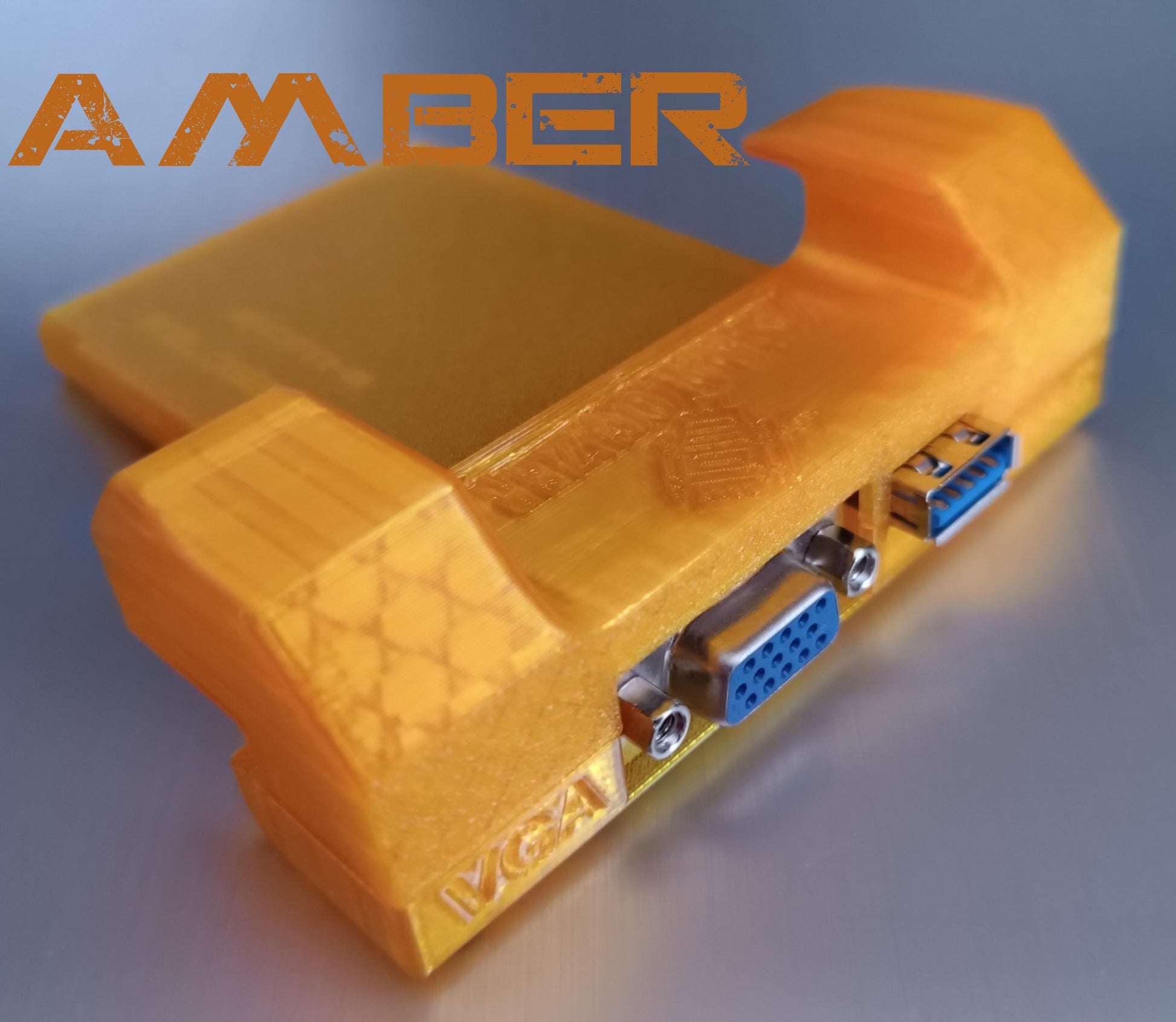

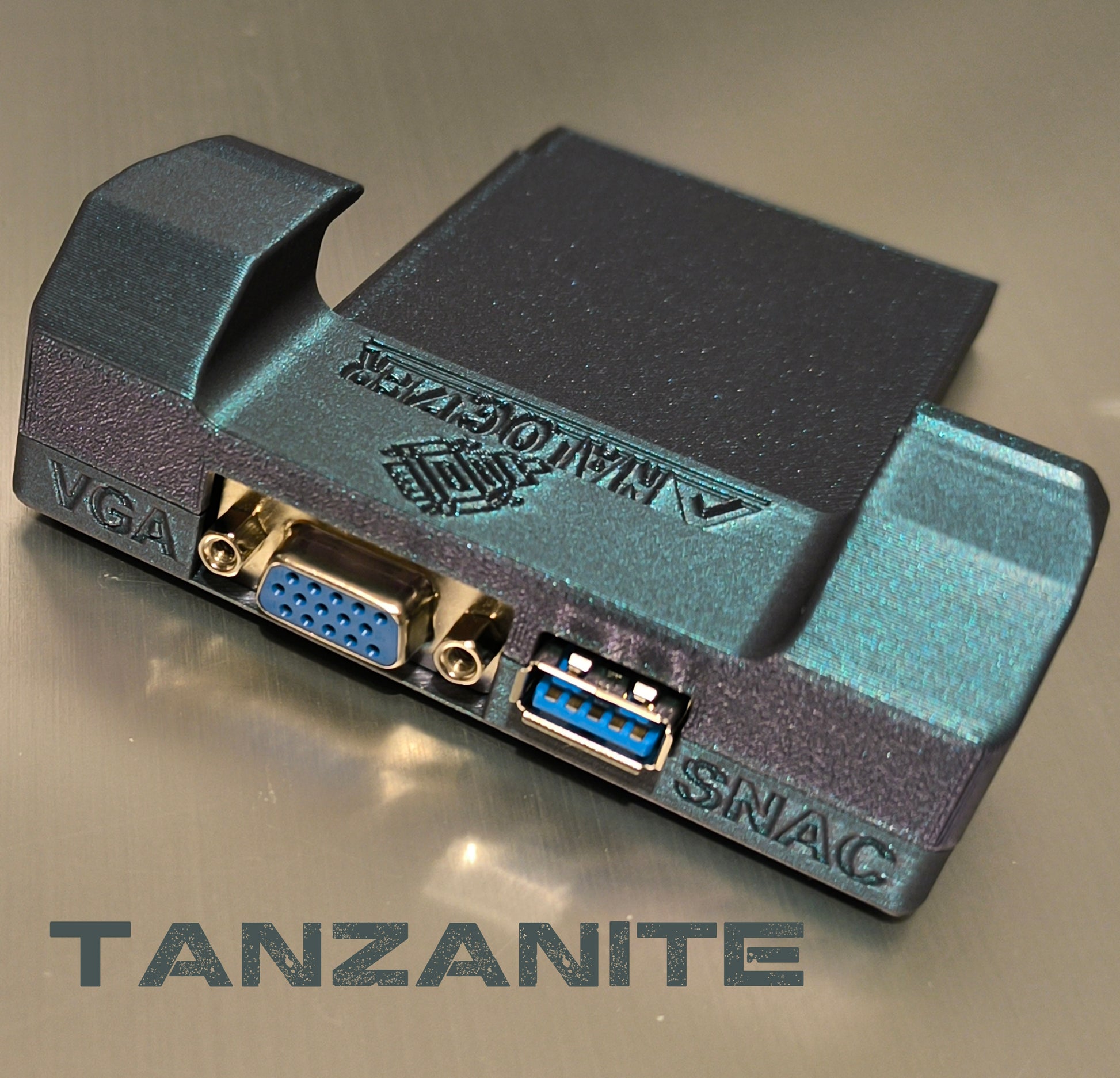

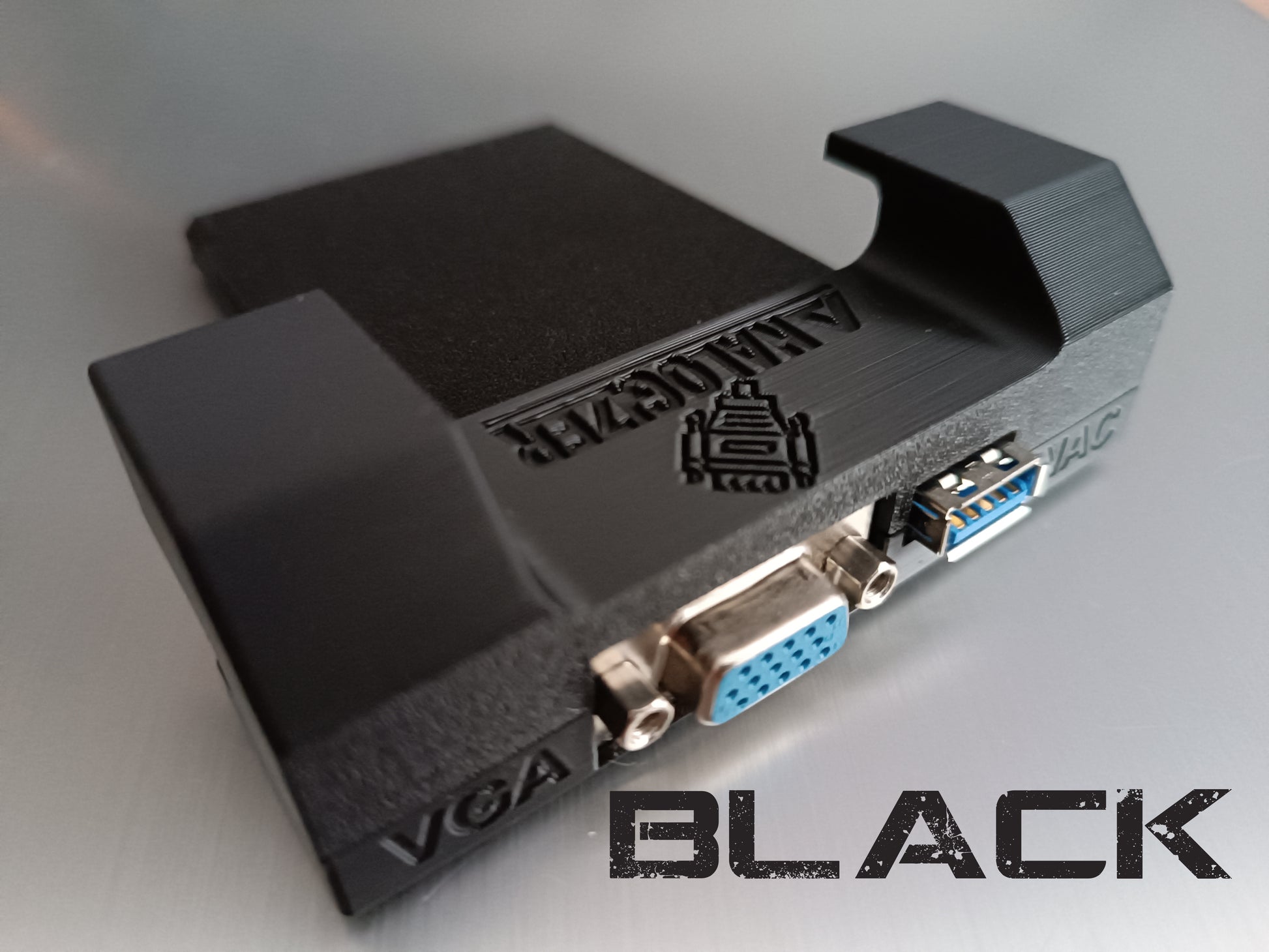

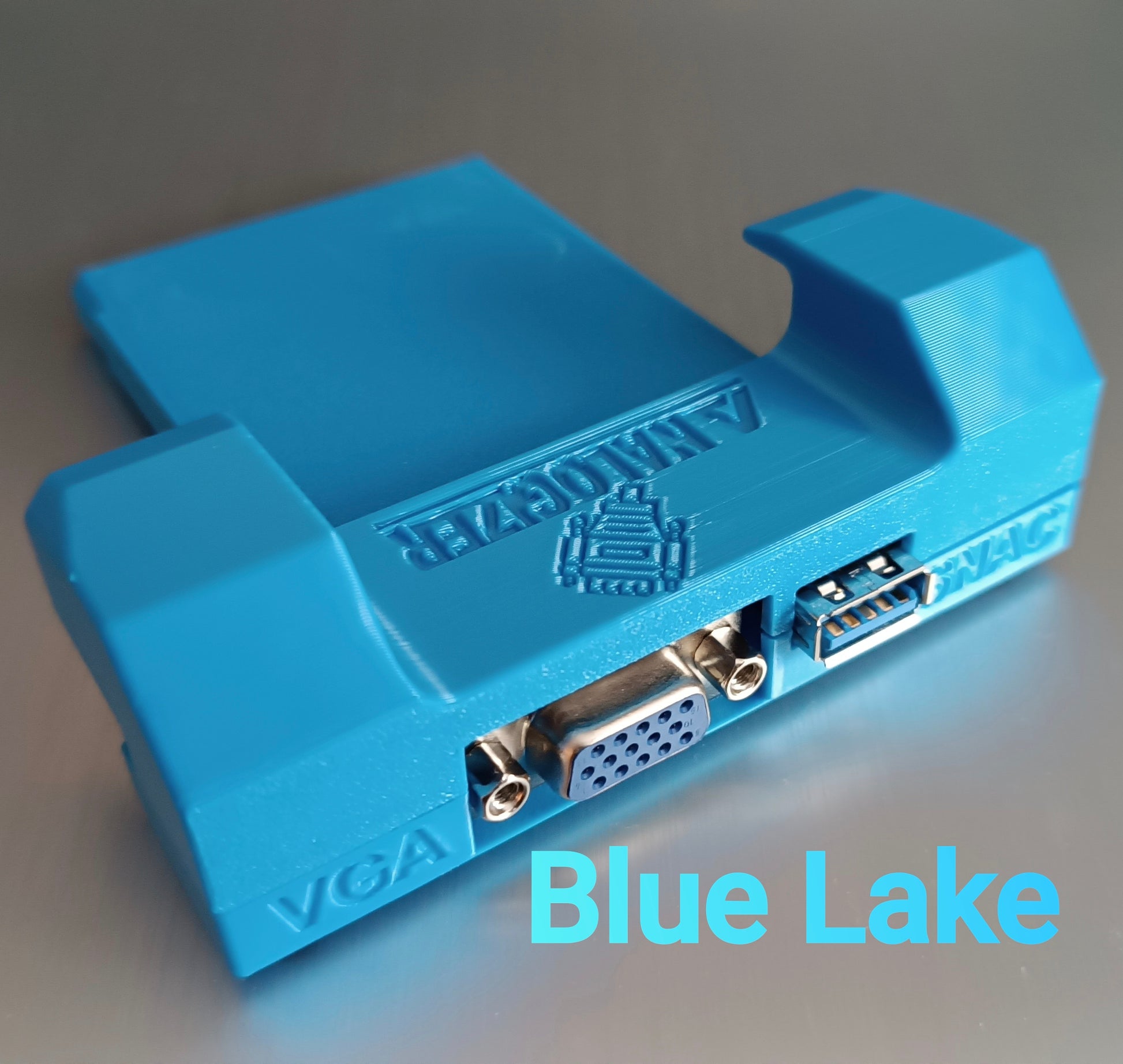

The Analogizer-FPGA adapter is a card that you can connect to the cartridge port of the Analogue Pocket handheld console and allows you to connect native controllers using the SNAC interface and use CRT screens to display the native video signal from the cores. You have several options to customize your adapter: the color can be the same for the entire case or a different one for the top and bottom. The option of a normal Riser Tab or 0.3mm for those Pockets that have an adhesive screen protector. You can use PSX controllers with the SNAC adapter you already have or the new adapter that you can get in this same online store: https://analogizer-fpga.com/products/psx-snac-adapter-usb-3-type-a-male-female-cable

For more information about Analogizer, please see the following link: Analogizer Wiki


Release 3 with improved video signals routing, incorporates SOG (Sync On Green) capability through a new switch that allows it to be activated. In the compatible core options you have a setting that allows you to modify the video output and now allows you to obtain RGsB, YPbPr, Y/C (requires active Y/C module), SVideo and composite video, and RGBHV SVGA scandoubler output. You can connect the video output to a TV with component video input, using a VGA to component video adapter cable, for example this cable:

https://www.infinitecables.com/products/vga-to-component-ycrcb-cable-hd15-male-to-3-x-rca-male

Active Y/C Adapter:

https://ultimatemister.com/product/mikes11-active-composite-svideo/

https://antoniovillena.com/product/mikes1-vga-composite-adapter/

Main repository and wiki for the Analogizer-FPGA adapter. You can find information about what kind of controllers, adapters and cables to use and see the list of officially supported openFPGA cores.

https://github.com/RndMnkIII/Analogizer

Shipping Policy:

The client who is from a country not belonging to the European Union is responsible for facing any possible expenses that may arise from the Import Customs management of their respective country.

Incoterms: DAP (delivery at place).
